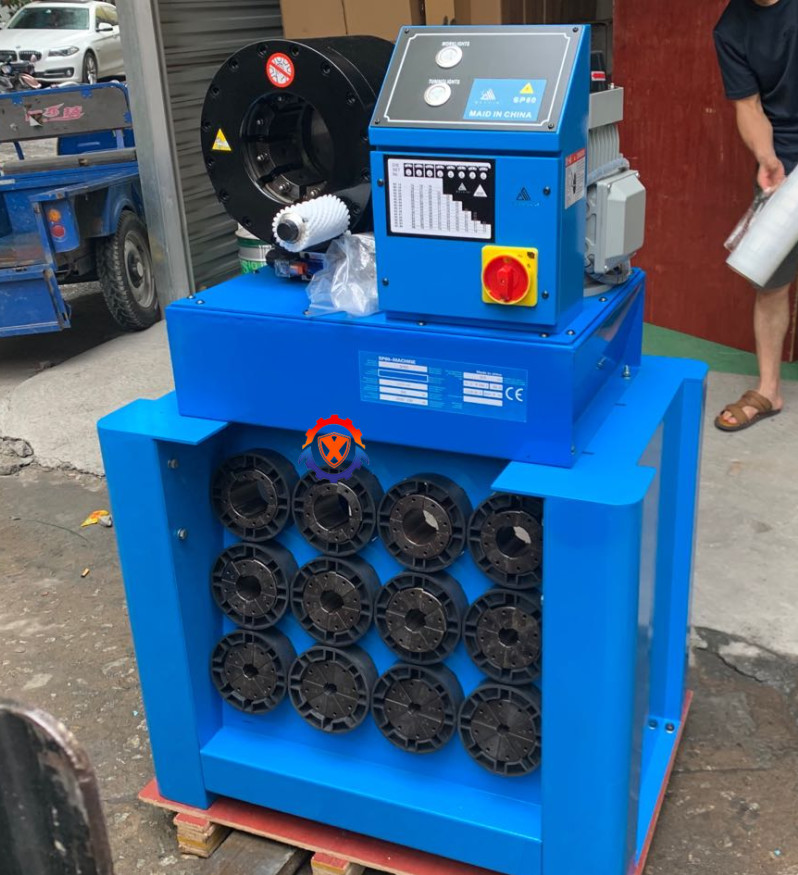

SP60 Crimping Machine 220V 380V Hydraulic Hose Crimper 15 Set Dies
Brief Introduction:
1. When using the tube press for the first time, it should be
crimped 20-30 times without load, and it can be used after
observing that all parts are normal.
2. When using the pipe press in winter, it should be withheld 20-30
times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the
corresponding mold to install on the mold base according to the
specifications of the hose to be crimped, and adjust the micrometer
scale.
4. Place the hose with the joint in the proper position in the
press head so that the entire length is crimped at one time.
5. Press the crimp button to execute the crimping operation until
the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly, use a vernier caliper to
check the outer diameter of the crimped joint jacket. If it does
not match the parameter table, fine-tune the micrometer scale until
the next hose crimp meets the requirements.
Model | sp60 |
| Max hose ID | φ 6~ 69mm (maximum 3 inch, min 2 min) |
| Rated voltage | Three-phase AC380V or single-phase AC220V |
| Random supporting mold | 15 set (14, 16, 20, 22, 26, 30, 34, 38, 46, 51, 54, 64, 69) STD |
| Weight | 330kg |
| Dimensions | 870(L)x680(W)x1380 (H)mm |
| Motor Size | 3KW |
| Mold opening and closing cycle | 8s |
Direction for use
1. When crimping, place the fitiing in the center of the mold as
much as possible, and do not press on the hexagonal nut. 2. Prevent
tools and other foreign objects from entering the press head. 3.
Every time after the work is completed, the eight mold bases must
be opened to the maximum extent, so that the spring can be in an
open state and the spring can be maintained, and the oil cylinder
is also in a pressure relief state to extend the life of the oil
seal.
