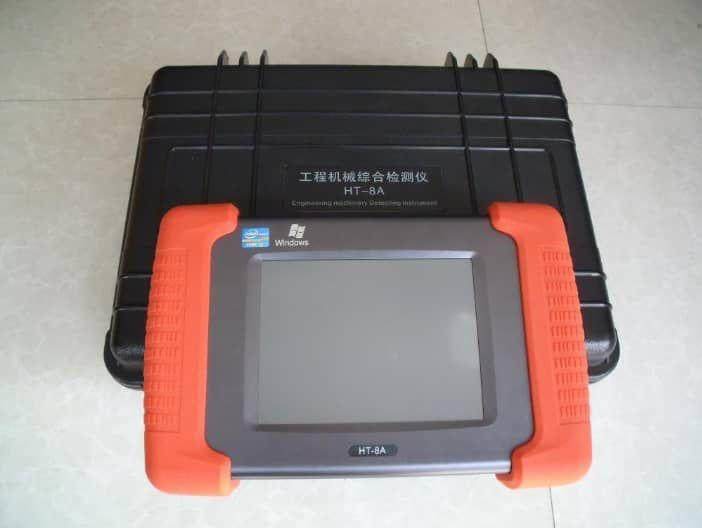

1. Function IntroductionHT-8A construction machinery diagnostic instrument. This product
integrates multiple functions.

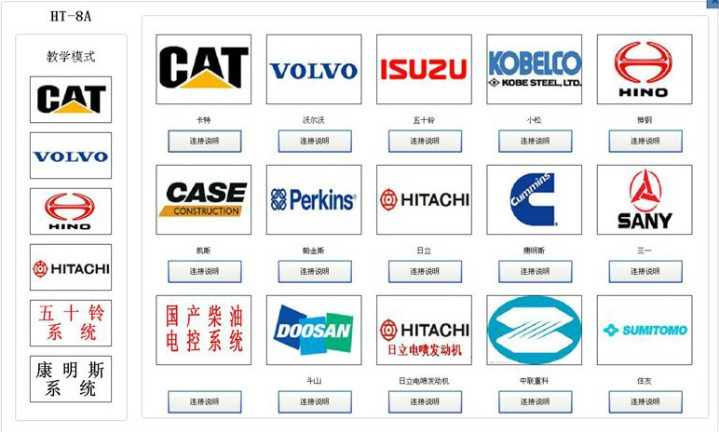

The testing software system covers various brands of excavators and
engineering equipment at home and abroad.
Including:
hydraulic system, electronic control system and electronic
injection engine system, which are widely used in the inspection of construction
machinery,
excavators, generator sets, trucks, drilling rigs, and oilfield
equipment. Easy to operate, data analysis, fault code, throttle calibration,
timing calibration, hydraulic flow matching calibration, cylinder
break test, injector QR code, computer board repair, ECU
programming refresh, time adjustment, model change, etc.
The Windows operating system, touch color screen, industrial-grade
motherboard, and dual-core CPU system run faster and have higher
system stability. The all-aluminum case is equipped with a
large-capacity solid-state electronic hard drive, which is
shock-resistant and drop-proof.
2. Multi-language version is customized according to needs to meet the needs of global
users. The hardware adopts 6-layer circuit board, which is stable,
anti-interference, and industrialized design to ensure that the
product works stably in harsh environments such as high temperature
and low temperature.
The products are suitable for large, medium and small maintenance
companies, training institutions, manufacturers, maintenance
stations, diesel engine manufacturers, mining machinery,
engineering machinery, petrochemical companies, etc.
3. Basic parameters
1) Power supply voltage: DC24V
2) Working temperature: -30℃~60℃ (no condensation)
3) Relative humidity: less than 90%
4) USB interface: Built-in standard USB interface (keyboard, mouse,
mobile hard disk can be plugged in)
5) CPU frequency: 1600MHz dual core
6) Memory: 2G expandable
7) Hard disk: 64G solid state electronic hard disk
8) Display: 8-inch color full touch screen
9) Battery: Built-in rechargeable lithium battery 3600MA
